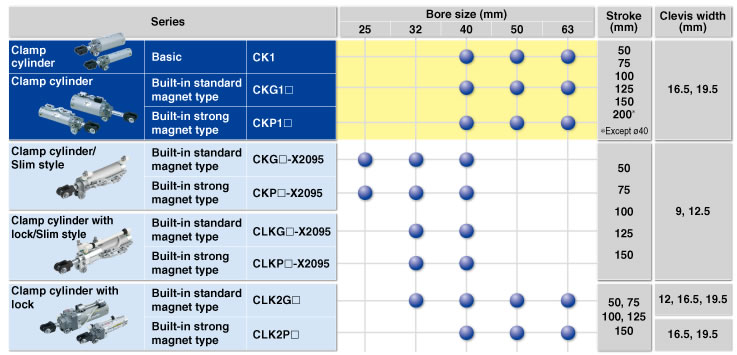

SMC氣缸CK□1夾緊缸：
| 種類 | 系列 | 動作方式 | 耳環寬度 | 缸筒內徑 |
|---|---|---|---|---|
| 標準型 | CK1 | 雙作用 | 16.5，19.5 | 40，50，63 |
|
內置標準磁石 （帶耐強磁的磁性開關） |
CKG1 | 雙作用 | 16.5，19.5 | 40，50，63 |
|
內置強力磁石 （帶耐強磁的磁性開關） |
CKP1 | 雙作用 | 16.5，19.5 | 40，50，63 |

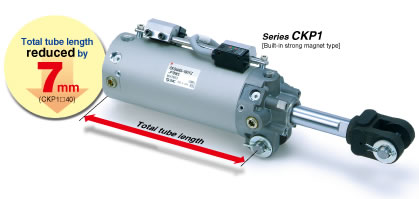

Total tube length reduced by 7mm(For CKP1l40)

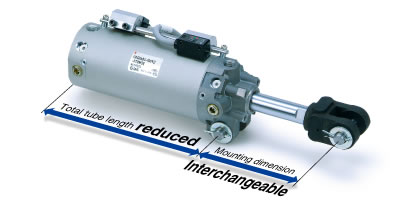

Mounting dimensions are the same as the existing product.
With air cushion
Unclamped side (Head end)···Standard
Air cushion on both ends·······Made to Order (-X1515)

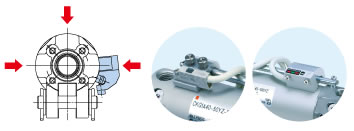

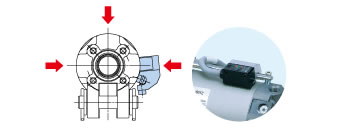

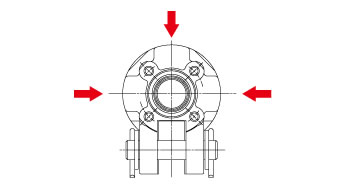

Piping ports are located on three surfaces.
Piping arrangement is more flexible corresponding to
the installed environment.

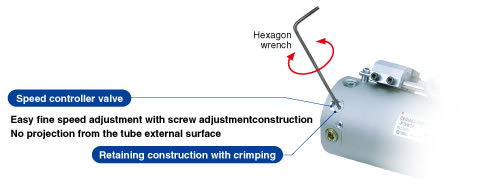

Easy fine speed adjustment with screw adjustment construction
No projection from the tube external surface
Possible to select depending on the application
[Series CKG1/Built-in standard magnet type]
D-P3DW type, D-P4DW
[Series CKP1/Built-in strong magnet type]
D-P79WSE type, D-P74L/Z

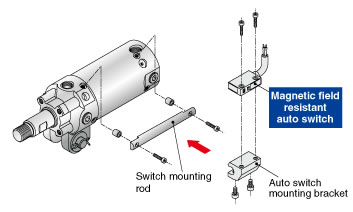

Possible to mount magnetic field resistant auto switch using the mounting rod
［Series CKG1/Built-in standard magnet type］
D-P3DWSC, D-P3DWSE, D-P3DW/L/Z (AC magnetic field)
D-P4DWSC, D-P4DWSE, D-P4DWL/Z (AC magnetic field)
［Series CKP1/Built-in strong magnet type］
D-P79WSE, D-P74L/Z (DC/AC magnetic field)
